updated: 16.05.2019
|
Free To Air TV-channels (DVB-S / MPEG-2 / FTA):
| | | | |
| |
12175L, sr: 4340, fec: 3/4Uplink - TNV
| | |
|
Free To Air radiochannels (DVB-S / MPEG-2 / FTA):
| | | | |
| |
12175L, sr: 4340, fec: 3/4Uplink - TNV
| | |
|
Encrypted channels (DVB-S / MPEG-2 / scrambled):
| | | | |
| |
12111L, sr: 27500, fec: 3/4Package: Trikolor-TV
| | |
|
Free To Air TV-channels (DVB-S / MPEG-4 / FTA):
| | | | |
| |
12226L, sr: 27500, fec: 3/4Uplink - Сколково
Package: Trikolor-TV
| | |
|
Crypted channels (DVB-S / MPEG-4 / scrambled):
| | | | |
| |
12226L, sr: 27500, fec: 3/4Uplink - Сколково
Package: Trikolor-TV
| | |
|
Crypted channels (DVB-S2 / MPEG-4 / scrambled):
| | | | |
| |
11230H, sr: 15000, fec: 3/5
Eurasia (Eutelsat W7) | | |
|
Free To Air TV-channels (DVB-S2 / MPEG-2 / FTA):
| | | | |
| |
12507H, sr: 1667, fec: 5/6
Eurasia (Eutelsat W7) | | |
|
Free To Air channels (DVB-S2 / MPEG-4 / FTA):
| | | | |
| |
11212H, sr: 14400, fec: 3/5
Eurasia (Eutelsat W7) | | |
|
Free To Air radiochannels (DVB-S2 / FTA):
| | | | |
| |
12190L, sr: 22500, fec: 3/4Uplink - Сколково
Package: Trikolor-TV
| | |
|
Encrypted radiochannels (DVB-S2 / scrambled):
| | | | |
| |
11881L, sr: 27500, fec: 3/4
Russia (Eutelsat W7)Uplink - Фабула
Package: Trikolor-TV
| | |
|
Encrypted channels HEVC (DVB-S2 / HEVC / scrambled):
| | | | |
| |
11862R, sr: 27500, fec: 3/4
Russia (Eutelsat W7)Uplink - Фабула
Package: NTV Plus
| | |
|

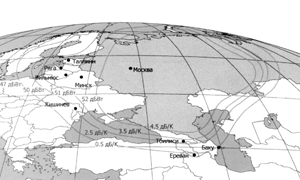

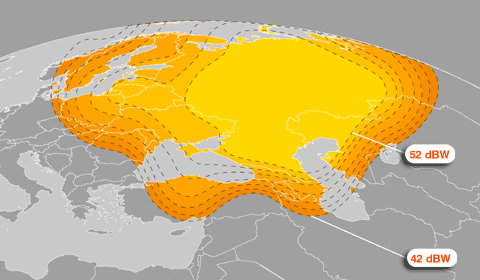

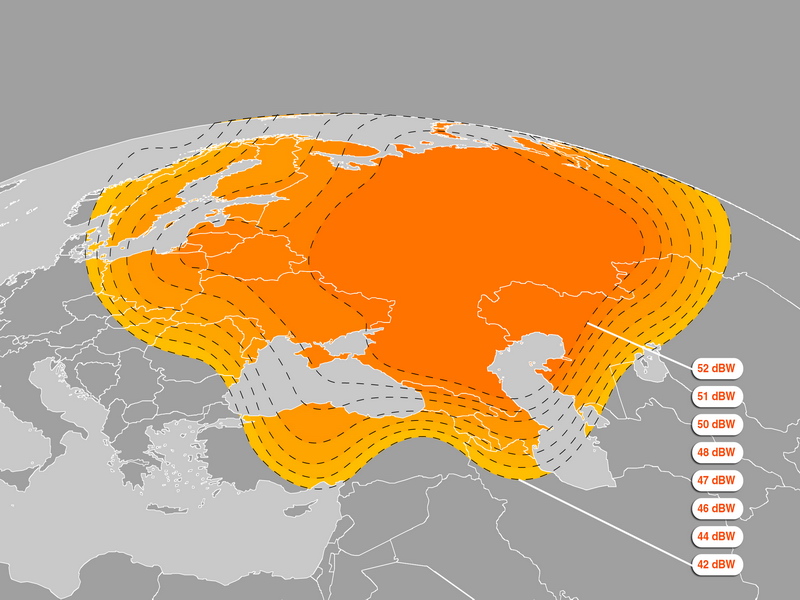

| Footprints. Карты покрытий. Hartile de acoperire. |
| # | Beam | Transponders, MHz. Мультиплексы, МГц. | Downlink, MHz. Приёмные частоты, МГц. | Numbers of TP. Количество ТП | Max EIRP, dBW. Макс. ЭИИМ, дБВт | Official site. Офиц. сайт | | 367 | Russia
Eutelsat W7 | 11747R 11766L 11785R 11804L 11823R 11843L 11862R 11881L 11900R 11919L 11938R 11958L 11977R 11996L 12015R 12034L 12054R 12092R 12130R 12149L 12169R | 11700 - 12500 MHz | 24 x 33 MHz | 53 | |  | bbcode:
367 | | # | Beam | Transponders, MHz. Мультиплексы, МГц. | Downlink, MHz. Приёмные частоты, МГц. | Numbers of TP. Количество ТП | Max EIRP, dBW. Макс. ЭИИМ, дБВт | Official site. Офиц. сайт | | 368 | Eurasia
Eutelsat W7 | 11026H 11109V 11212H 11230H 11428H 11431H 11439H 11446H 11643V 11647V 11651V 11654V 12507H 12508H 12521H 12524V 12542V 12572V 12630H | 11040 - 11110; 11490 - 11700; 12500 - 12750 MHz | 27 x 33 MHz | 46 | |  | bbcode:
368 | | # | Beam | Transponders, MHz. Мультиплексы, МГц. | Downlink, MHz. Приёмные частоты, МГц. | Numbers of TP. Количество ТП | Max EIRP, dBW. Макс. ЭИИМ, дБВт | Official site. Офиц. сайт | | 369 | Steerable
Eutelsat W7 | 10804R | 10700 - 10950 MHz | 3 x 33 MHz | 0 | |   | | bbcode: | |
|
| Teleports |

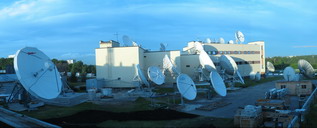

| # | Uplink | Owner: | D, m | Power, W | Site | Launched | Coordinates | | 101 | Сколково
Skolkovo
tp:
12190 L
12226 L
12245 R
12284 R
12303 L
12322 R
12380 L
12399 R
12437 R
12456 L
12476 R
| ФГУП Космическая связь (ГПКС)
Russian Federation
, Moscow
ул. Шаболовка, д. 37
tel. (095) 232-6443
fax. (095) 232-6443
Юрий Прохоров | 9,0 | 400 | Russian Federation
, Moscow
Одинцовский район в д. Марфино (Сколковское шоссе) | 1998 | |          | bbcode:
101 | | # | Uplink | Owner: | D, m | Power, W | Site | Launched | Coordinates | | 110 | TNV
tp:
12175 L
| ФГУП Космическая связь (ГПКС)
Russian Federation
, Moscow
ул. Шаболовка, д. 37
tel. (095) 232-6443
fax. (095) 232-6443
Юрий Прохоров | 3,7 | unknown | Russian Federation
, Kazan
| | |
110 | | # | Uplink | Owner: | D, m | Power, W | Site | Launched | Coordinates | | 250 | Фабула
Faboola
tp:
12073 L
12265 L
12341 L
12418 L
| ООО Нью Медиа Ледженд
Russian Federation
, Moscow
Б. Афанасьевский пер., д. 22, 3-й подъезд
tel. +7 (495) 691 4461
fax. +7 (495) 691 4461
| 7,6 | unknown | Russian Federation
, Moscow
Одинцовский район в д. Марфино (Сколковское шоссе) | | |     | bbcode:
250 | | # | Uplink | Owner: | D, m | Power, W | Site | Launched | Coordinates | | 251 | Фабула
Faboola
tp:
11785 R
11804 L
11823 R
11862 R
11881 L
11900 R
11919 L
12015 R
12054 R
| ООО Нью Медиа Ледженд
Russian Federation
, Moscow
Б. Афанасьевский пер., д. 22, 3-й подъезд
tel. +7 (495) 691 4461
fax. +7 (495) 691 4461
| 9,0 | unknown | Russian Federation
, Moscow
Одинцовский район в д. Марфино (Сколковское шоссе) | 2010 | |  | | bbcode: | |
|
| |
|
|
|
| |
|
TRANSPONDER NEWS
|
|
|
Express AMU1, EUTELSAT 36A/B, 36° East
[16.05.19] 'Shop & Show' is FTA on 11785 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4 [frocus.net] [16.05.19] 'Istoria', 'Moya Planeta', 'Nauka' has started in package "НТВ Плюс" on 12245 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4, Viaccess [frocus.net] [16.05.19] 'Rossiya 1 HD' has started in package "НТВ Плюс" on 12015 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4 / HD, Viaccess [frocus.net, sawa.ivanisov] [16.05.19] '2x2 (0h)', 'Moskva 24', 'Nashe', 'Meteo TV', 'Prosveschenie', 'Sovershenno sekretno' has started in package "НТВ Плюс" on 11977 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4, Viaccess [frocus.net, sawa.ivanisov] [16.05.19] 'Hollywood HD' has started in package "НТВ Плюс" on 11938 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4 / HD, Viaccess [frocus.net, sawa.ivanisov] [16.05.19] 'CNN International Europe' has started in package "НТВ Плюс" on 11900 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4, Viaccess [frocus.net, stepan] [16.05.19] 'Perviy Kanal HD (0h)' has started in package "НТВ Плюс" on 11823 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4 / HD, Viaccess [frocus.net, sawa.ivanisov] [13.05.19] 'Ani' has started in package "НТВ Плюс" on 12437 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4, Viaccess [forums.frocus.biz, alex333] [08.05.19] 'FAN' has started in package "НТВ Плюс" on 12437 R, sr 27500, fec 3/4, DVB-S2 / 8PSK, MPEG-4, Viaccess [forums.frocus.biz, alex333] [01.05.19] 'Nat Geo Wild HD', 'National Geographic HD Russia' has left 11958 L [forums.frocus.biz, сибилек] | | News for this position only |
